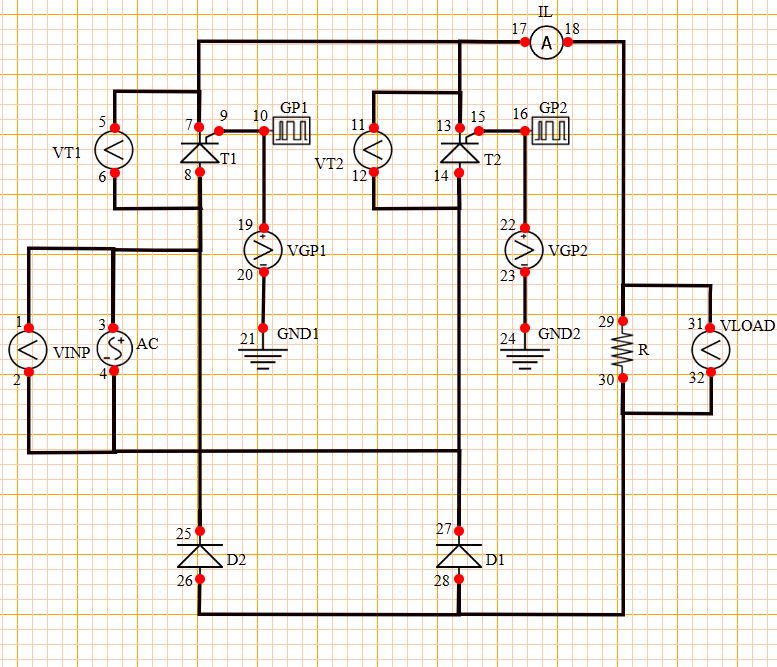

STEP 1: Drag and drop the components in the workspace to create the circuit.

Nos of required components:

AC Source – 1, Thyristor – 2, Gate Pulse – 2, Diode - 2

Resistor -1, Ammeter – 1, Voltmeter – 6, Ground - 2


STEP 2: Make the connections as per the instructions given below:

(a) (01-03, 03-08, 02-04, 08-25, 14-27)

(b) (04-27, 05-07, 06-08, 07-17, 13-17)

(c) (18-29, 09-10, 11-13, 12-14, 15-16)

(d) (10-19, 20-21, 16-22, 23-24, 26-28)

(e) (28-30, 29-31, 30-32)

Note: Click on the wire to delete the connection.

STEP 3: Click on the CHECK button to check the connections.

Note: Right click on the component to open the dialog box to edit the properties of the component.

STEP 4: Input the values for all the required components (AC Source, Gate Pulses and Resistor) and the waveform will get plot automatically.

STEP 5: Now, Click on the ADD button to insert the reading into the observation table.

STEP 6: Now, you can input different values as per your requirement to get the desired waveform.

STEP 7: Repeat Step 5 to again insert the reading into the table and now repeat Steps 6 to 7 to take more readings.

STEP 8: Click on the PRINT button to take out the print of the webpage.

STEP 9: Click on the RESET button to reload the webpage.

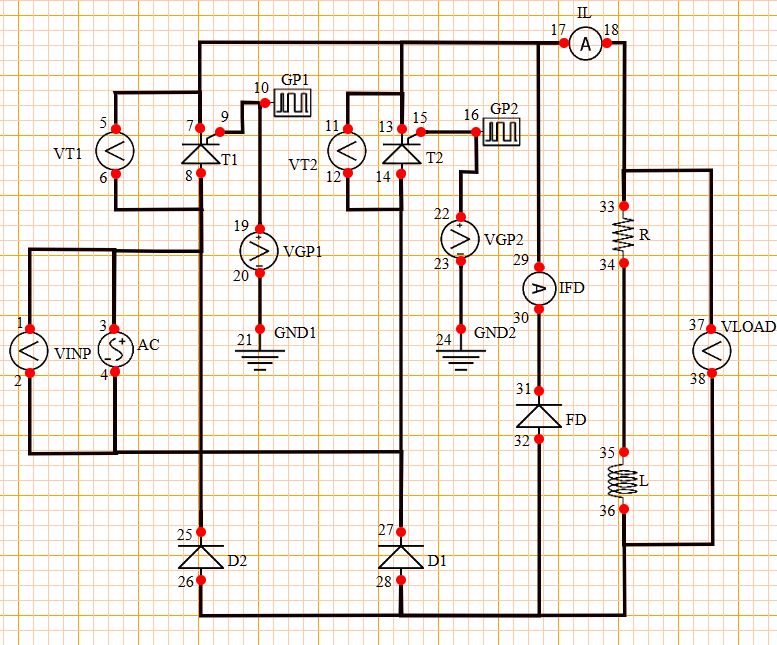

STEP 1: Drag and drop the components in the workspace to create the circuit.

Nos of required components:

AC Source – 1, Thyristor – 2, Gate Pulse – 2, Diode - 3, Resistor - 1

Inductor - 1, Ammeter – 2, Voltmeter – 6, Ground - 2

STEP 2: Make the connections as per the instructions given below:

(a) (01-03, 03-08, 02-04, 08-25, 14-27)

(b) (04-27, 05-07, 06-08, 07-17, 13-17)

(c) (18-33, 09-10, 11-13, 12-14, 15-16)

(d) (10-19, 20-21, 16-22, 23-24, 26-28)

(e) (28-36, 17-29, 30-31, 32-28, 34-35)

(f) (33-37, 36-38)

Note: Click on the wire to delete the connection.

STEP 3: Click on the CHECK button to check the connections.

Note: Right click on the component to open the dialog box to edit the properties of the component.

STEP 4: Input the values for all the required components (AC Source, Gate Pulse 1, Resistor and Inductor) and the waveform will get plot automatically.

STEP 5: Now, Click on the ADD button to insert the reading into the observation table.

STEP 6: Now, you can input different values as per your requirement to get the desired waveform.

STEP 7: Repeat Step 5 to again insert the reading into the table and now repeat Steps 6 to 7 to take more readings.

STEP 8: Click on the PRINT button to take out the print of the webpage.

STEP 9: Click on the RESET button to reload the webpage.

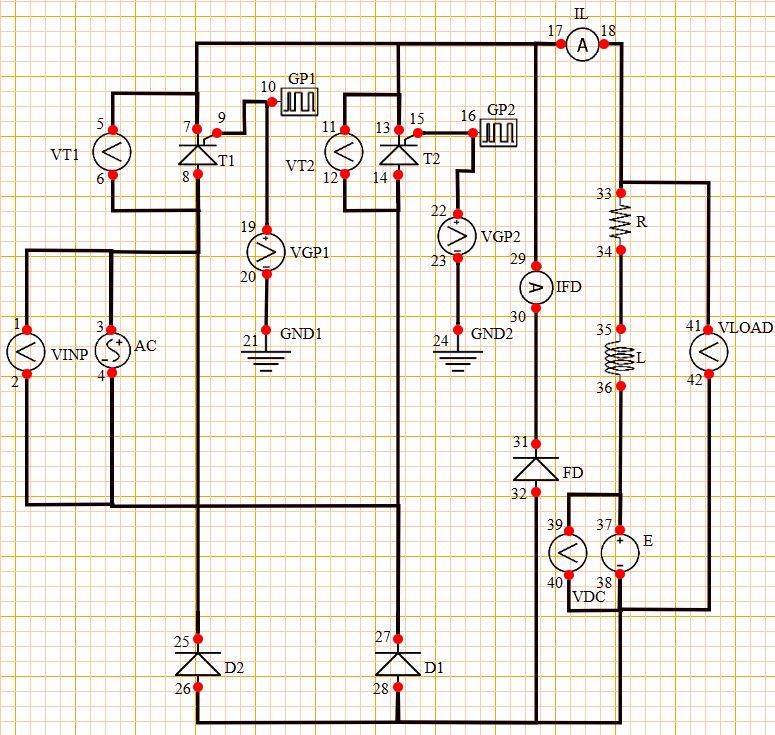

STEP 1: Drag and drop the components in the workspace to create the circuit.

Nos of required components:

AC Source – 1, Thyristor – 2, Gate Pulse – 2, Diode - 3, Resistor -1

Inductor - 1, DC Source – 1, Ammeter – 2, Voltmeter – 7, Ground - 2


STEP 2: Make the connections as per the instructions given below:

(a) (01-03, 03-08, 02-04, 08-25, 14-27)

(b) (04-27, 05-07, 06-08, 07-17, 13-17)

(c) (18-33, 09-10, 11-13, 12-14, 15-16)

(d) (10-19, 20-21, 16-22, 23-24, 26-28)

(e) (28-38, 17-29, 30-31, 32-28, 34-35)

(f) (36-37, 37-39, 40-38, 33-41, 38-42)

Note: Click on the wire to delete the connection.

STEP 3: Click on the CHECK button to check the connections.

Note: Right click on the component to open the dialog box to edit the properties of the component.

STEP 4: Input the values for all the required components (DC Source (E), Gate Pulse 1, Resistor and Inductor) and the waveform will get plot automatically.

STEP 5: Now, Click on the ADD button to insert the reading into the observation table.

STEP 6: Now, you can input different values as per your requirement to get the desired waveform.

STEP 7: Repeat Step 5 to again insert the reading into the table and now repeat Steps 6 to 7 to take more readings.

STEP 8: Click on the PRINT button to take out the print of the webpage.

STEP 9: Click on the RESET button to reload the webpage.
